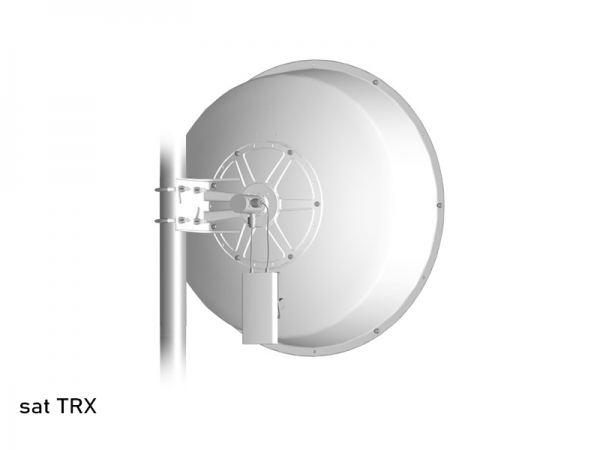

by sat TRXPosted on February 26, 2020February 29, 2020Posted in antenna Mimo Dish Antenna TRX-6500 Electrical specifications Frequency Range MHz 4950-5850 MHz Gain dBi 30dBi Polarization V and H Beamwidth Vertical deg 5° Horizontal 5° Front-To-Back Ratio dB > 40dB Isolation dB > 35dB VSWR ≤ 1.5:1 type; max 2.0 Maximum Power Per Port W 50W Impedance Ω 50Ω Lightning Protection Direct Ground Mechanical specifications Dimensions m φ0.6 Weight kg 6kg Antenna Color White Mount mm Pole (D30-80mm) Bracket Material Aluminum Reflector Material Aluminum Connector Type 2-N-Female Operational Temperature ℃ -55℃ to +70℃ Operational Humidity % ≤95 Survival Wind Speed km/h 200 Shipping Dimensions( H x W x D) mm 70x70x35 (including 2pcs Antenna) Shipping Weight kg 13kg (including 2pcs Antenna)
