PanelBridge fp

Product Specifications
Product code	TRX-fp50	TRX-fp51
10/100/1000 Ethernet ports	2	1
Wireless standards	802.11a/n	802.11a/n/ac
CPU working frequency	560MHz	775MHz
CPU Core count	/	1
CPU	/	QCA9563
Wireless chip model	AR9344	QCA9882
TX Power	27dBm
Receiving Sensitivity	-95dBm
Size of RAM	64MB	128MB
Flash	8MB	16MB
Operating frequency	4.9-6.1GHz
Antenna gain	25dBi
Antenna Beamwidth	11°
Isolation	>35dB
Max Power consumption	8W
Power Supply	24 V,0.5A	24V,0.5A Gigabit POE
Dimension	385x385x59mm
Weight	2.45kg

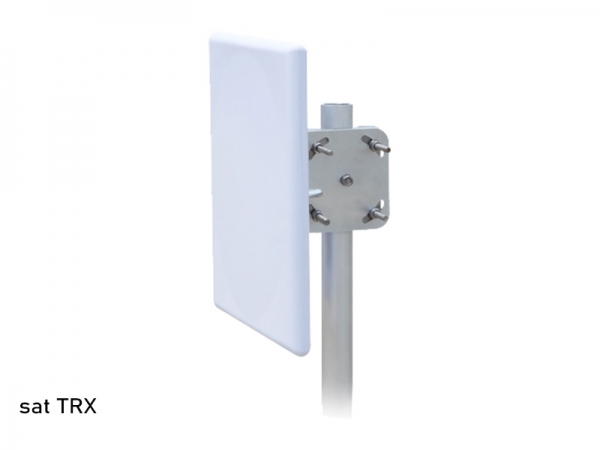

Mounting Kit	Pole Mounting Kit Included
Enclosure Characteristics	Outdoor UV Stabilized Plastic
Operating System	SuperOS	SuperOS AC
Operating temperature	-40℃ to +70℃
Channel Bandwidth	20/40MHz	20/40/80MHz
