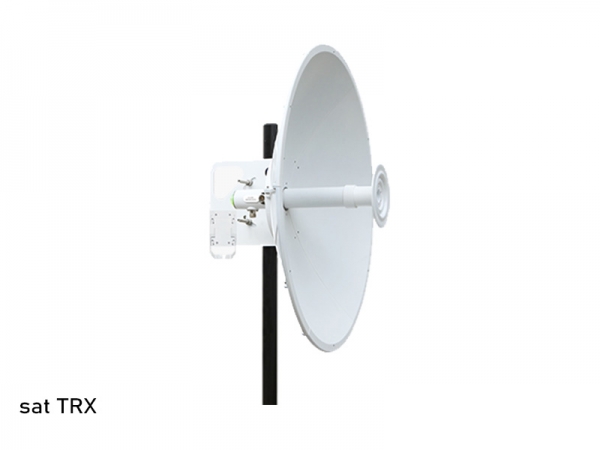

by sat TRXPosted on February 26, 2020February 29, 2020Posted in antenna Polar TRX-950 Dual Slant Technical Specifications Electrical Model Polar TRX-950 Frequency Range 4.9-5.1GHz 5.1-5.9GHz 5.9-6.5GHz Gain 29dBi 30dBi 31dBi VSWR <2.5 <2.0 <2.0 Polarization Dual Slant (V/H or ±45°) Isolation >30dB Front to Back Ratio >35dB Horizontal Beam width 5° Vertical Beam width 5° Maximum Power Per Port 50W Impedance 50Ω Lighting protection DC Ground Mechanical Connector 2 * N Female Antenna Size φ0.6 m Antenna Weight 6.5kg Antenna color white Dish material aluminum Diameter of the Pole Φ30cm to φ80 cm Operational Temperature -40°C to +70°C (-32°F to +158°F)
