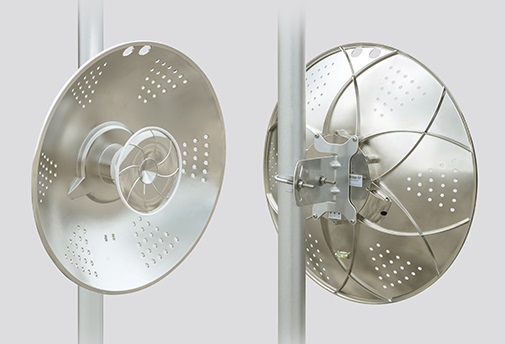

by sat TRXPosted on February 19, 2020February 19, 2020Posted in Uncategorized Die-cast aluminum Outdoor UV Stabilized Plastic TRX-780 Product Specifications Product code DB-5G25AC DB-5G25 GB-5G25 Wireless standards 802.11a/n/ac 802.11a/n Frequency Band 4.9-6.1GHz CPU working frequency 775MHz 560MHz Wireless chip model QCA9563+QCA9882+AR8033 AR9344 TX Power 27dBm Receiving Sensitivity -96dBm -95dBm Size of RAM 128MB 64MB Flash 16MB 8MB 10/100 Ethernet ports 1X 10/100/1000 Mbps RJ45 Ethernet Ports 1X 10/100 Mbps RJ45 Ethernet Ports Antenna gain 25dBi Antenna Beamwidth 8° Antenna Isolation 25dB Power Supply 24 V,0.5A Max Power consumption 8W Weight 2.5kg 1kg Diameter Φ400mm Operating temperature -40℃ to +70℃ Antenna material Die-cast aluminum Outdoor UV Stabilized Plastic Bracket Material Stainless steel
